The TB6612FNG Dual Stepper Motor Driver Module is a popular and highly efficient driver used in robotics, automation, and mechatronics projects. Because it uses modern MOSFET technology, it runs cooler, safer, and smoother than older drivers such as the L298N. As a result, many students, hobbyists, and engineers choose this module for their motor-control tasks.

Why This Module Is Better

The TB6612FNG Dual Stepper Motor Driver Module delivers up to 1.2A continuous current per channel, and this is more than enough for most small to medium motors. Moreover, it supports PWM speed control, which allows you to adjust speed and torque very smoothly. Additionally, the built-in thermal shutdown, overcurrent protection, and standby mode help protect both the motor and your control system.

Ease of Use and Compatibility

Another advantage is its excellent compatibility. The logic voltage range of 2.7V–5.5V works perfectly with Arduino, ESP32, STM32, Raspberry Pi, and many other microcontrollers. Because the motor voltage can go up to 15V, it supports a wide range of motors used in hobby robots and automation systems.

Furthermore, the module is small and lightweight, so it fits easily into compact robots, sliders, camera rigs, 3D printed machines, and classroom projects. In addition, it offers reliable performance even during long operation periods.

More About TB6612FNG Technology

If you want to learn more about motor driver technology, you can read additional information on Wikipedia:
https://en.wikipedia.org/wiki/Motor_controller

For more robotics parts, visit our internal link:
https://eleberric.com

Overall, the TB6612FNG Dual Stepper Motor Driver Module continues to be a trusted choice. Because it offers high efficiency, good safety features, and smooth motor control, it remains ideal for modern embedded systems and DIY robotics.

• Specifications

  • Driver IC: TB6612FNG

  • Channels: 2 (Dual DC motors) / 1 Bipolar Stepper Motor

  • Continuous Current: 1.2A per channel

  • Peak Current: 3.2A

  • Logic Voltage: 2.7V – 5.5V

  • Motor Voltage: 4.5V – 15V

  • PWM Frequency: Up to 100 kHz

  • Standby Function: Supported

  • Built-in Protections: Thermal shutdown, overcurrent protection

  • Module Weight: ~5g

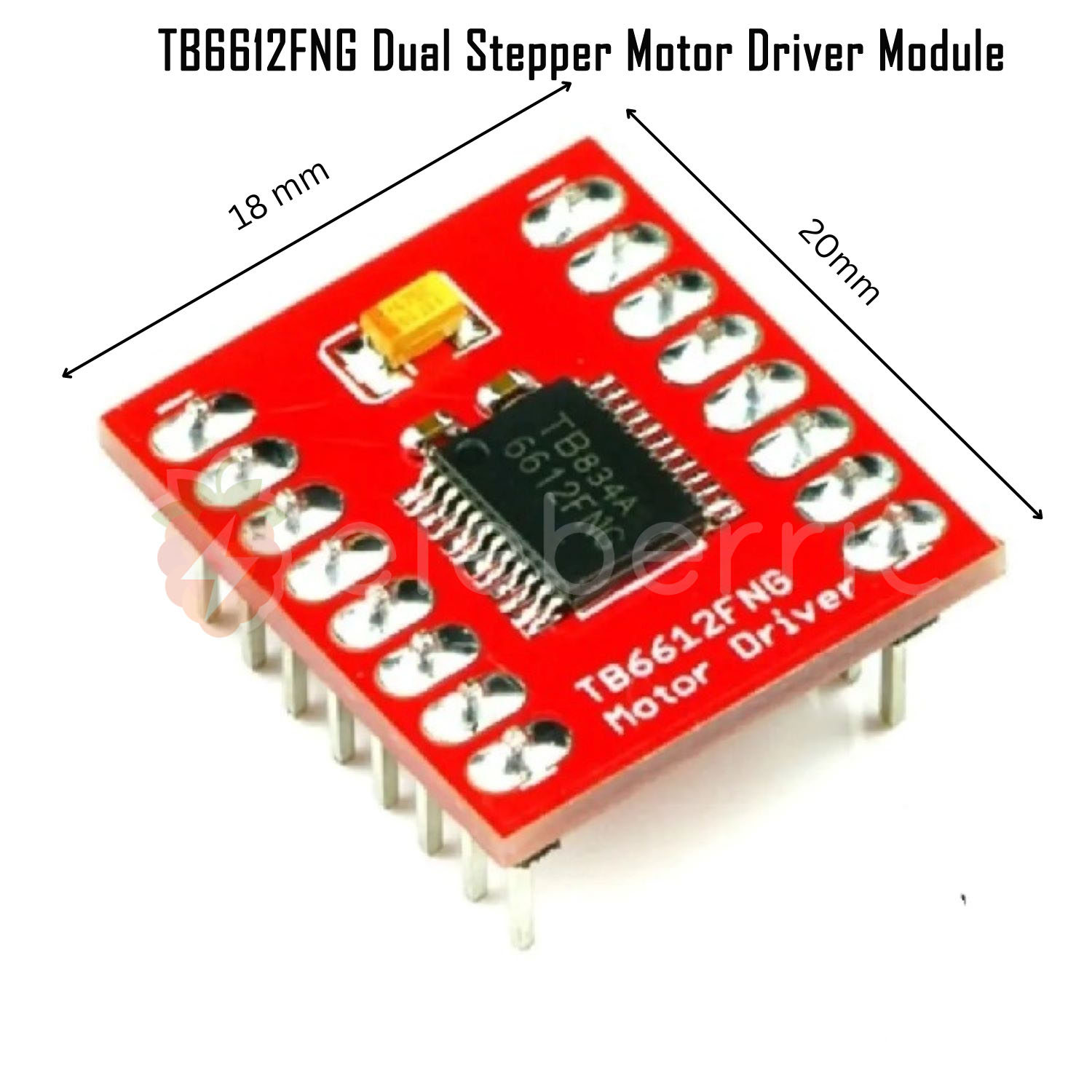

  • Dimensions: Approx. 20mm × 18mm × 3mm

  Key Features

  • High-efficiency MOSFET motor driver

  • Controls 2 DC motors or 1 stepper motor

  • Low heat and low power loss

  • Fully compatible with Arduino, ESP32, STM32, Raspberry Pi

  • Supports high-frequency PWM

  • Built-in overheating and overcurrent safety

  • Compact and lightweight design

  • Precise and smooth motor control

  Applications / Use Cases

  • Robotics and smart vehicles

  • CNC and 3D-printed mechanisms

  • Automated conveyor systems

  • IoT and embedded systems

  • Motorized camera sliders

  • Education and STEM robotics kits

  • RC projects and DIY automation
