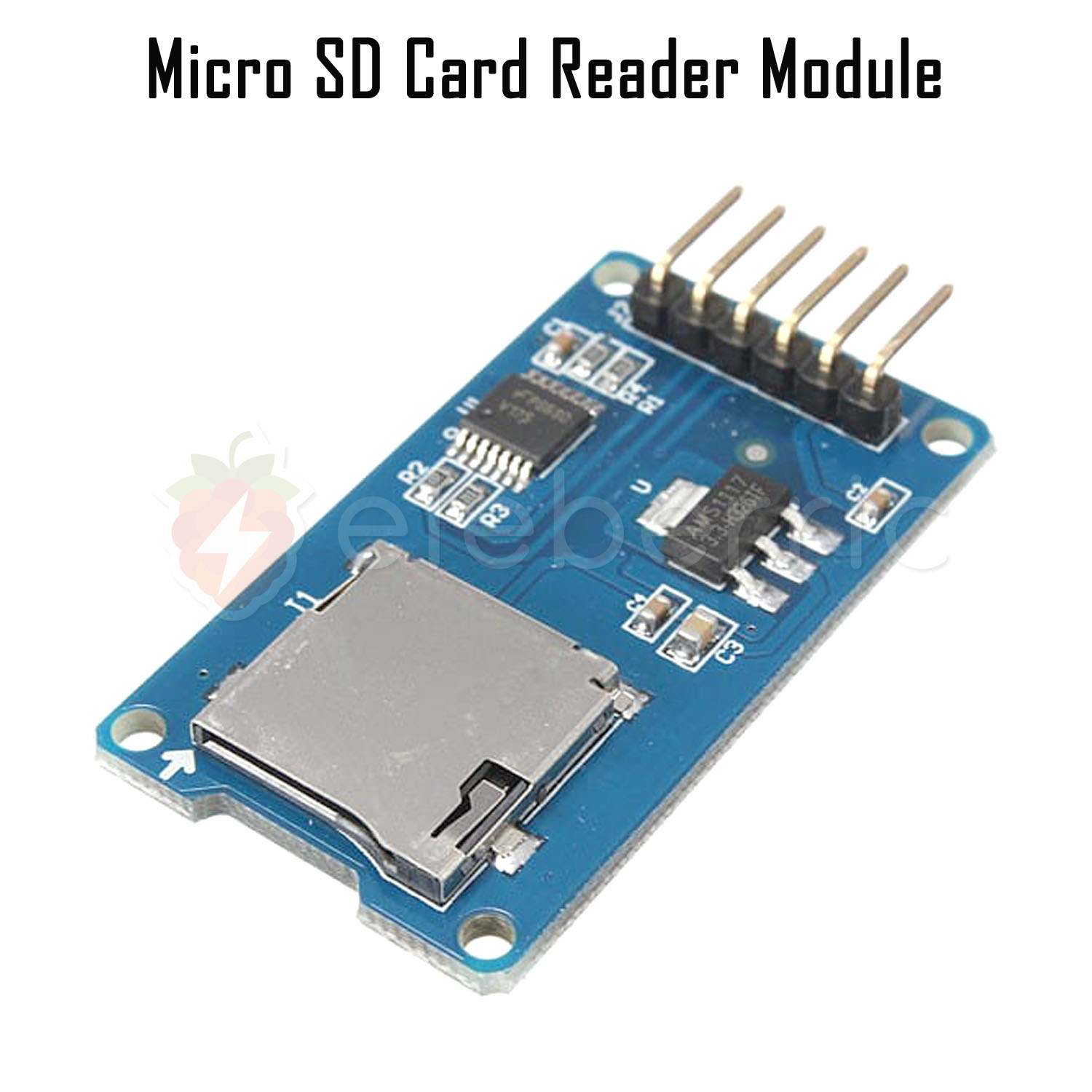

Micro SD Card Reader Module

The Micro SD Card Reader Module is a compact, SPI-based interface board designed to connect microSD memory cards to microcontrollers and development boards. It provides a convenient way to read from and write to microSD cards, making it ideal for data logging, storage, and file handling in embedded electronics projects.

The module supports standard FAT16 and FAT32 file systems and works seamlessly with most 3.3V and 5V microcontrollers, including Arduino, ESP32, STM32, and Raspberry Pi. It uses the SPI (Serial Peripheral Interface) protocol for fast and stable communication and features onboard voltage regulators and level shifters to protect your microcontroller and SD card from over-voltage damage.

The Micro SD Card Reader Module is commonly used in projects that require storage of sensor data, configuration files, or multimedia content. With an easy-to-use pinout and compatibility with SD libraries in Arduino IDE and other platforms, this module is beginner-friendly and robust for long-term use.

Order the Micro SD Card Reader Module today from eleberric.com, your reliable electronics component supplier in Sri Lanka.

Specification

• Compatible Card Type: Micro SD / TF Card

• Interface: SPI (MISO, MOSI, SCK, CS)

• Operating Voltage: 3.3V–5V DC

• Logic Level: 3.3V (with onboard voltage level shifting for 5V input)

• File System Support: FAT16 / FAT32

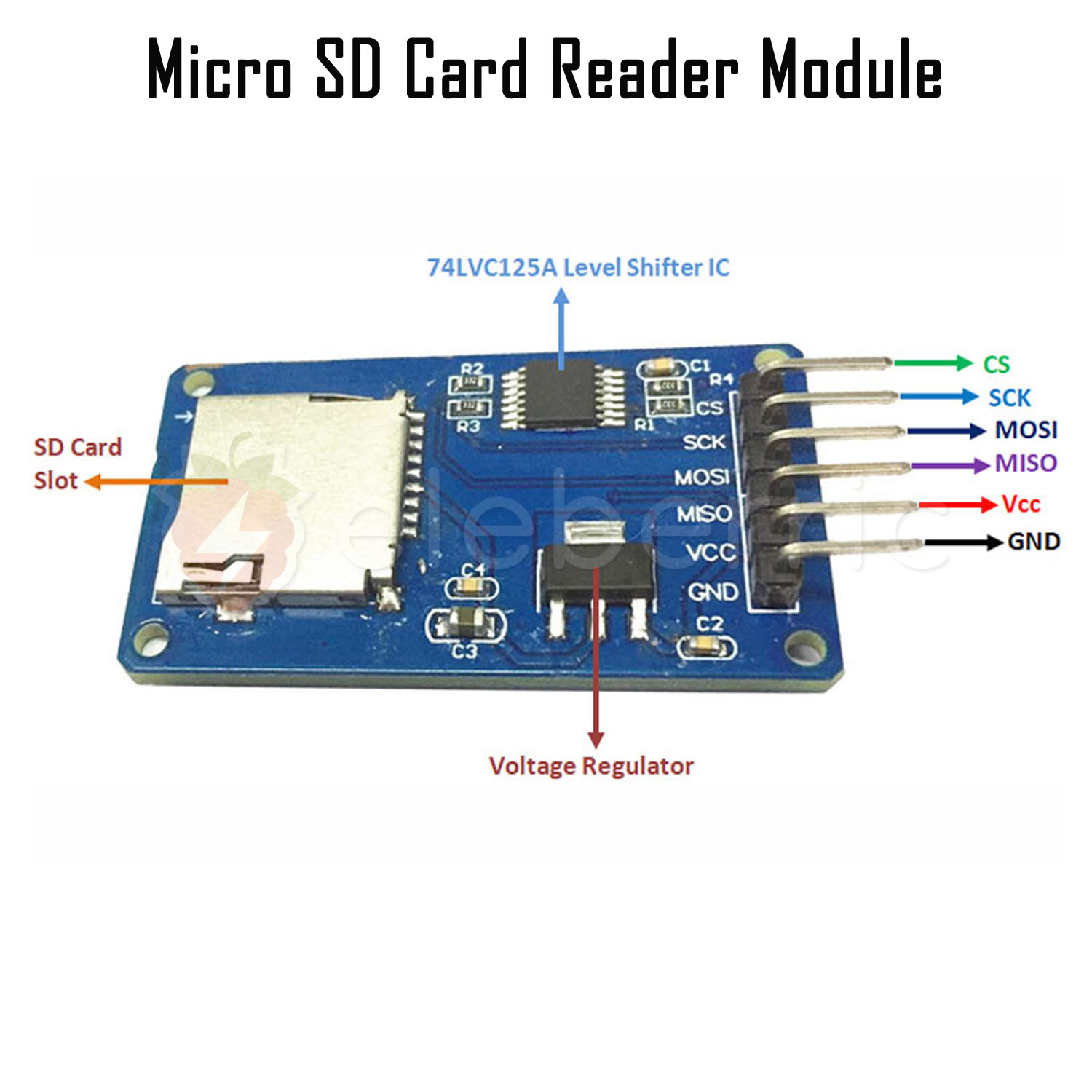

• Onboard Components: AMS1117 3.3V voltage regulator, level shifters

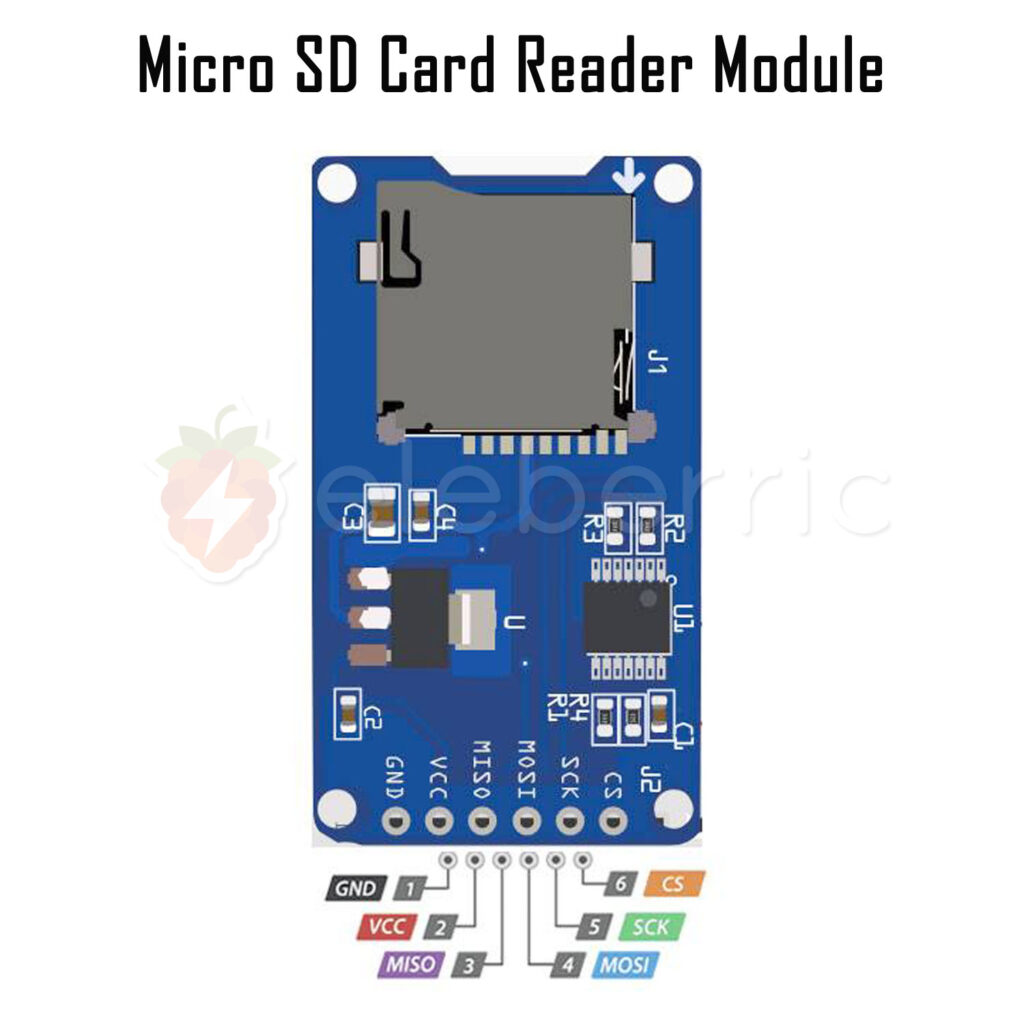

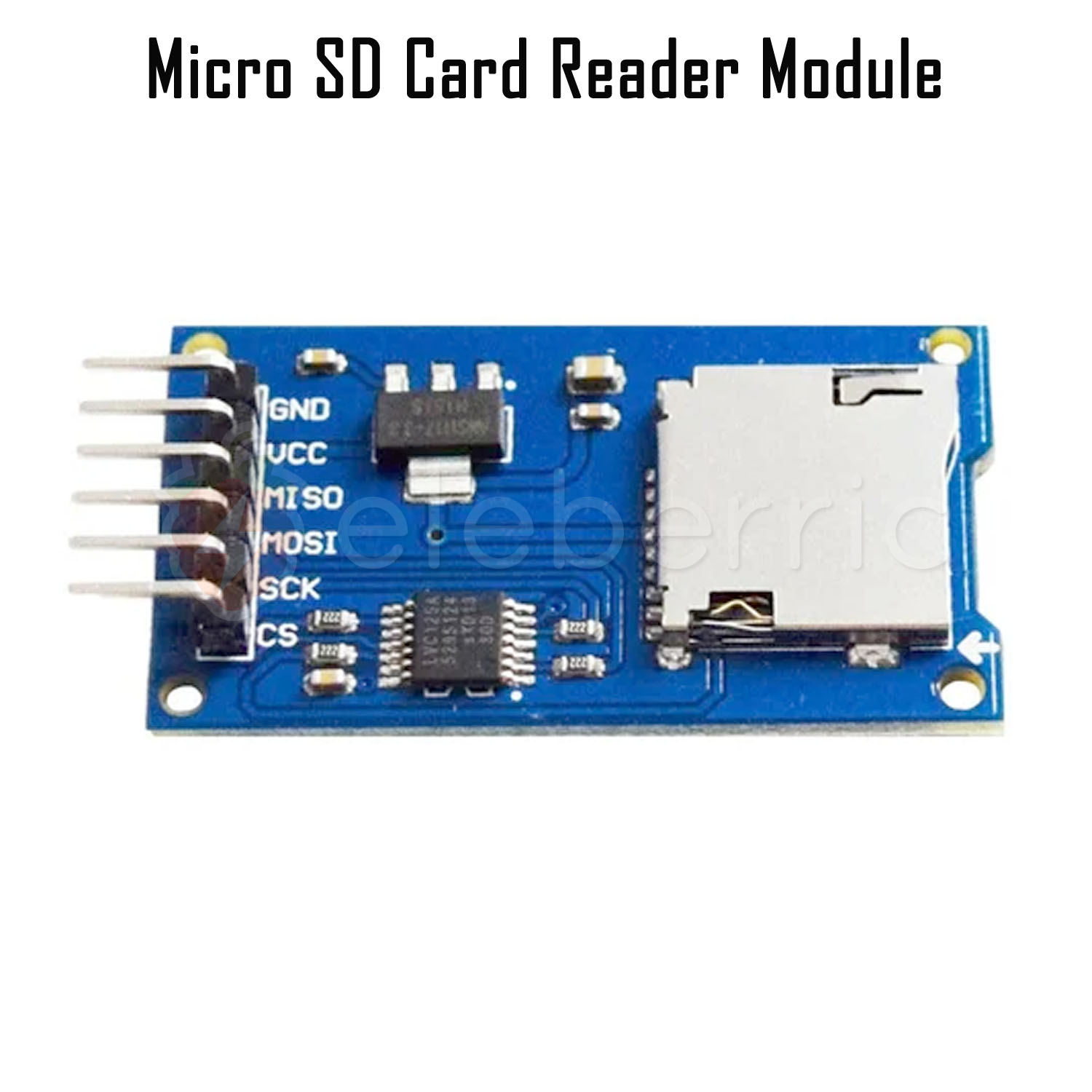

• Interface Pins: VCC, GND, MISO, MOSI, SCK, CS

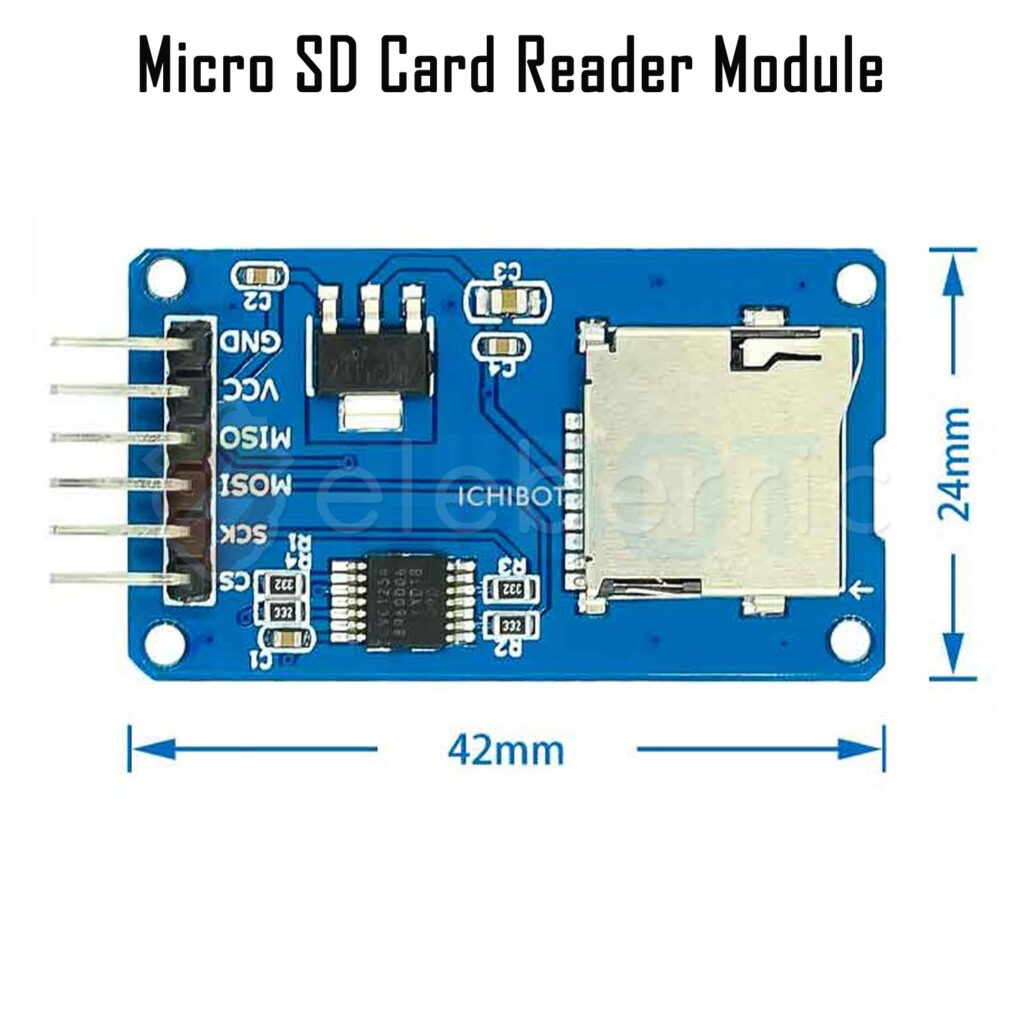

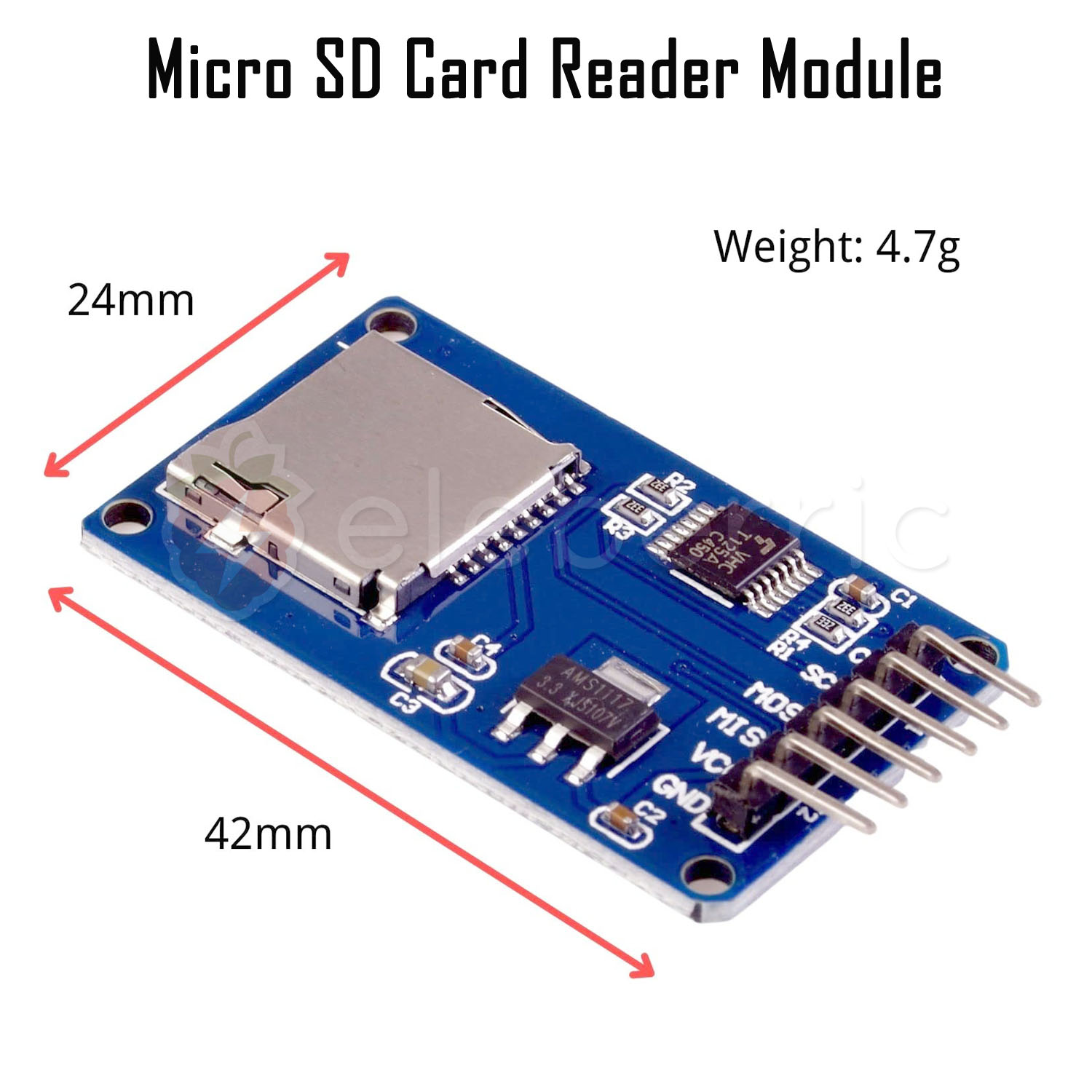

• Dimensions: Approx. 25mm x 42mm

• LED Indicator: Power status

• Mounting Holes: Yes

• Weight: ~4g

Key Features

• Allows microcontrollers to read/write data to microSD cards

• SPI interface for fast, stable communication

• Onboard 3.3V regulator and logic level conversion

• Supports FAT16/FAT32 formatted cards

• Compatible with Arduino SD library and other platforms

• Breadboard and jumper wire friendly pin layout

• Compact and lightweight for embedded use

• Ideal for standalone data logging and file storage

Applications

• Arduino and ESP32 data logging projects

• Environmental sensor data storage

• GPS tracking and SD-based storage

• Audio playback or data file management

• SD card bootloader systems

• Portable configuration file storage

• Camera or image file storage in embedded systems

• Robotics and automation with SD-based configuration
