    IP2312 Fast Charging 3A 5V to 4.2V Type-C Polymer Ternary Lithium Battery Module

    Availability:

    In stock
    Add to wishlist
    Compare

    The IP2312 Fast Charging 3A 5V to 4.2V Type-C Polymer Ternary Lithium Battery Module is an efficient and reliable module designed for charging lithium batteries. It converts a 5V input via a Type-C port to a stable 4.2V output, delivering up to 3A charging current. With up to 95% efficiency and advanced safety features, it is perfect for DIY electronics, portable power banks, and other battery-powered projects.

    රු320.00 රු350.00

    In stock

    Compare

    The IP2312 Fast Charging Module is a high-efficiency lithium battery charging board designed for 3.7V lithium polymer and ternary lithium batteries. Using a USB Type-C input, this module delivers up to 3A charging current at a regulated 4.2V output. It’s ideal for portable power bank circuits, DIY battery packs, and embedded charging solutions.

    At the heart of this module is the IP2312 charging IC, which features integrated fast-charge control, overvoltage protection, and intelligent current regulation. The module is designed to safely and quickly charge single-cell 3.7V lithium-ion or LiPo batteries, stopping at a full charge of 4.2V.

    The USB-C interface allows it to work with common Type-C chargers or power banks. It also includes output solder pads that can directly connect to a load or protection circuit. The compact PCB size and built-in protection features make it ideal for compact DIY electronics, battery-powered projects, and rapid prototyping.

    Order the IP2312 Type-C Lithium Battery Charging Module today from eleberric.com, Sri Lanka’s trusted source for DIY electronics and power management components.

    Specification

    • Model: IP2312 Fast Charging Module

    • Input Voltage: 5V DC (via USB Type-C port)

    • Output Voltage: 4.2V (suitable for 3.7V LiPo cells)

    • Charging Current: Max 3A

    • Battery Type: Single-cell 3.7V Li-ion / LiPo / ternary lithium

    • Charging IC: IP2312

    • Protection Features: Overvoltage, current limiting, short-circuit protection

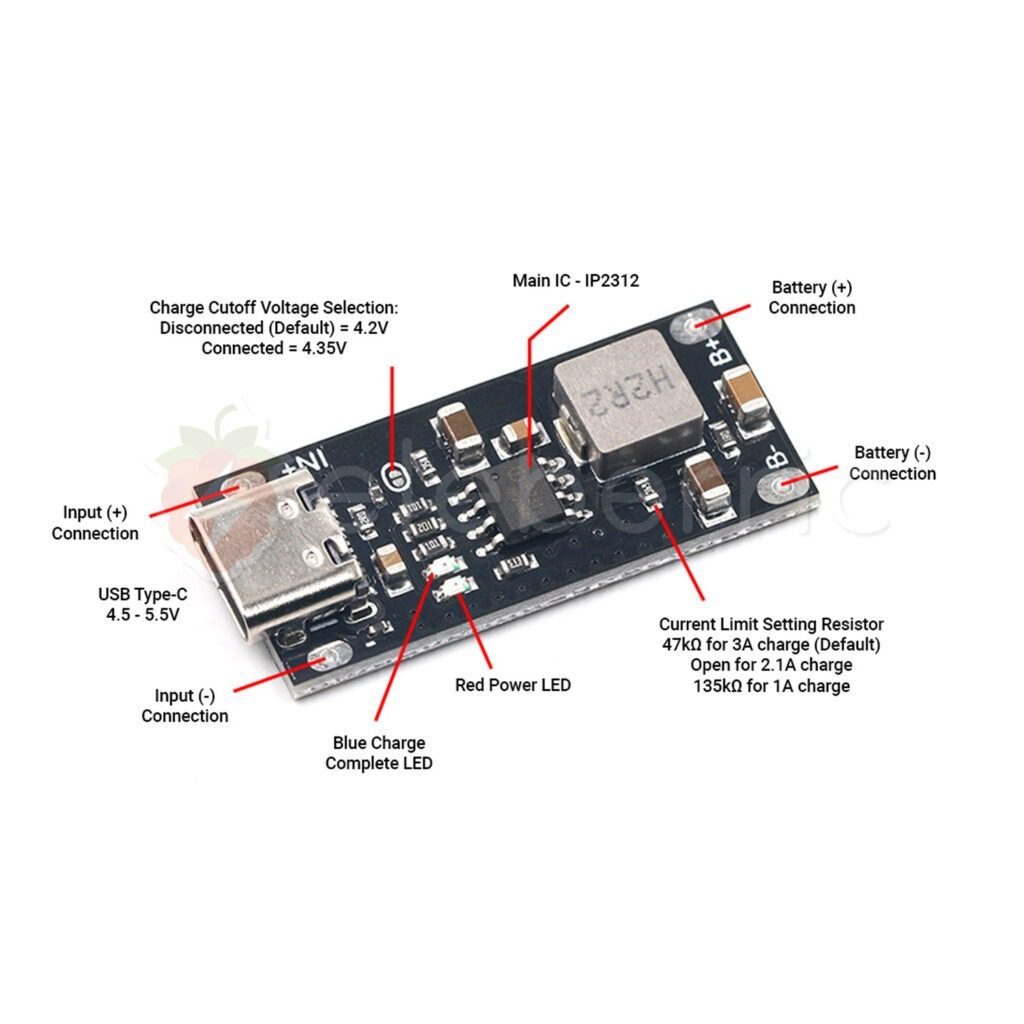

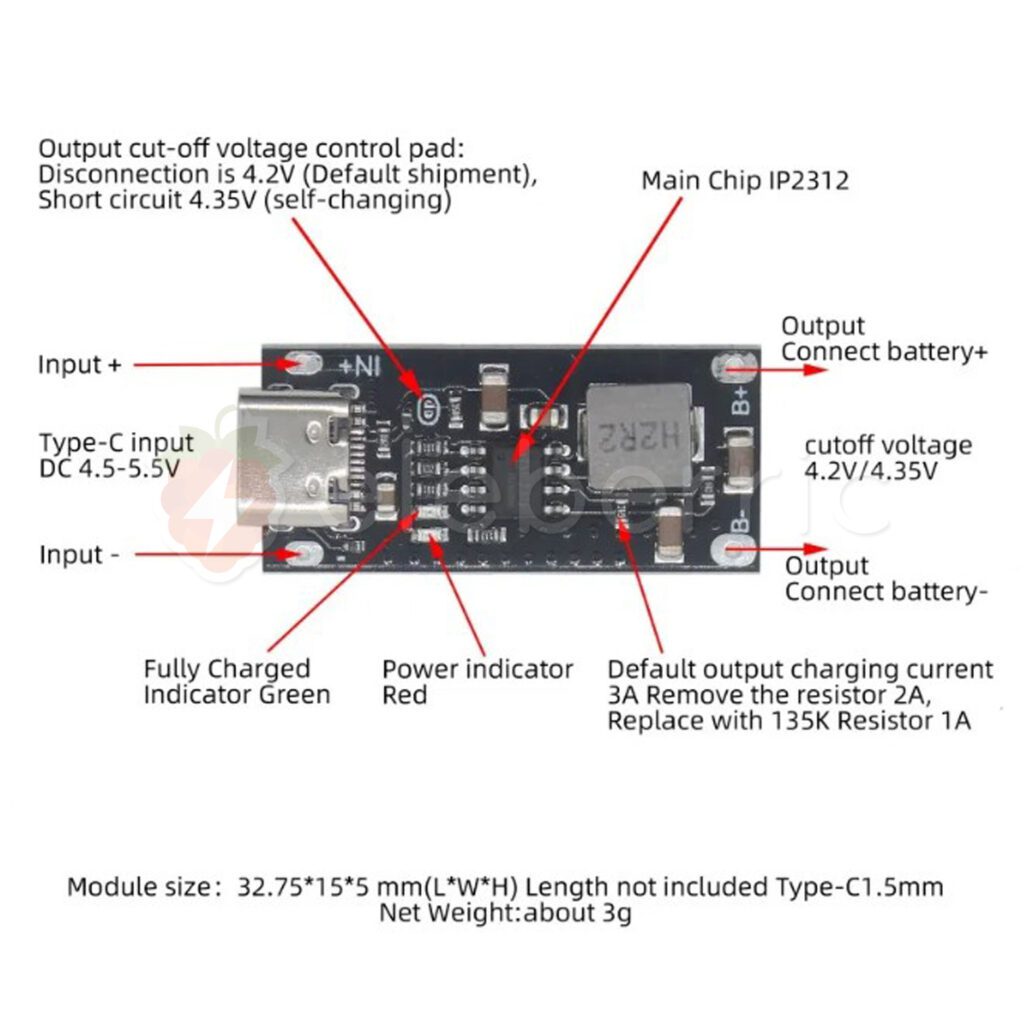

    • Interface: USB Type-C for input, 2-pin output pads for battery/load

    • Indicators: Charging and full-charge status LEDs

    • Dimensions: Approx. 25mm × 17mm

    • Weight: ~4g

    Key Features

    • Supports fast charging for single-cell lithium batteries

    • USB Type-C input for modern power sources

    • 3A maximum current for rapid charging

    • Onboard status LEDs for charge indication

    • Compact size for embedded systems and portable projects

    • Safe charging with integrated protection features

    • Easy solder pads for battery and load connections

    • High-efficiency and stable output with low ripple

    Applications

    • Portable battery-powered devices

    • Power bank circuit development

    • DIY energy storage systems

    • Smart wearable and IoT projects

    • Embedded lithium battery charging

    • Educational and electronics prototyping

    • Mobile device repair and replacement circuits
